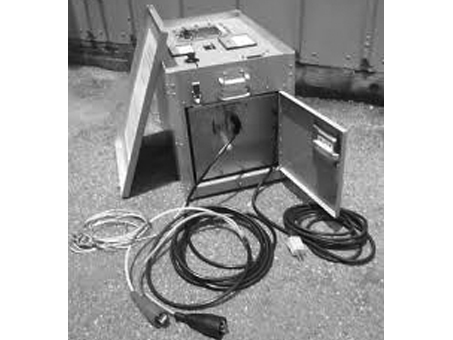

B-.35, B-.45

HI-MEG DC Dielectric Testers and Insulation Hipots

WS
PHV
PHV
  • Designed for rugged operation
  • 35 kV & 45 kV megohmmeter
  • DC Hipot to 45 kV
  • Most reliable 35 and 45 kV testers available
  • Contains high reliability VON voltage doubler circuit with silicon rectifiers

The VON B-.35 and B-.45 can be used for most industrial and substation testing including insulation resistance, dielectric absorption, DC Hipot, and polarization index tests. Units can be operated off of 120V AC or 12V DC with the optional inverter and a light, easily portable design makes no job site too remote.

The VON B-.35 and B-.45 contains an instantaneous input circuit breaker, a variable autotransformer for continuous voltage adjustment and much more. Megohm scales on the output meter allow direct resistance reading from 100,000 ohms to 300,000 megohms.

Weight80 pounds (36.4 kg)
Width15.125” (38.5 cm)
Height18” (45.7 cm)
Length23” (58.4 cm) over handles
Input110-125 volts 50-400 hz A.C. or 12 volts D.C.
(optional) or 210-280 volts 50 hertz (optional)
Testing5 ma to 45kv, 1% ripple 6 ma to 35kv
CaseAluminum with grey finish
